REI ANDRE DELUXE 12GHz with ULTRASONIC PROBE

Now Scanning up to 12GHz with Ultrasonic Probe

IPS PROUDLY ANNOUNCE THE ARRIVAL OF THE ENHANCED FEATURE ANDRE DELUXE NEAR-FIELD BROADBAND RECEIVER.

The ANDRE is a handheld broadband receiver that detects known, unknown, illegal, disruptive or interfering transmissions. The ANDRE locates nearby RF, infrared, visible light, carrier current, and other types of transmitters. Quickly and discretely identify threats using the ANDRE Advanced Kit’s wide range of accessories specifically designed to receive transmissions across a 10 kHz to 6 GHz frequency range. Technical security specialists will appreciate the portability and responsiveness of the ANDRE. It is an excellent complement to an OSCOR Spectrum Analyzer as a preliminary non-alerting tool.

Request Price Quote
View Features & Applications

Product Images

ANDRE DELUXE NEAR-FIELD  BROADBAND RECEIVER Features

  • HISTOGRAM DISPLAY: The ANDRE features a signal strength histogram displaying RF levels over user-selected time intervals ranging from 5 seconds to 24 hours. Observe differences between digital, analog, and burst signals and set alert thresholds with audio and haptic feedback.
  • ZOOM VIEW: In zoom mode, only a 30 dB segment of the histogram is displayed. This reduced scale enables users to easily see small changes in RF signal activity.
  • SIGNAL INFORMATION AND BAND DETAILS: The ANDRE frequency counter automatically generates a signal list from the strongest signals. Signal frequencies are listed beginning with the strongest signal and can be designated as threatening, friendly, or unknown. Double-tapping a signal provides more details including band classification information.
  • AUDIO MODE: The ANDRE can demodulate and playback live analog audio. Ten-second audio files can be recorded, stored, and played back. The live audio screen displays a bar graph showing received signal strength.
  • DATA LOGGING (Deluxe feature): This new software feature provides histogram data for downloading to a PC and viewing on the ANDRE Data Viewer. Captured information includes time/date, signal amplitude, user settings, probes, chart duration and detailed frequency band information.



REI ANDRE NEAR FIELD BROADBAND DETECTOR: Specifications

RF DETECTOR

Sensitivity:

  • -75 dBm for 3 GHz frequency (typical at RF input)

Stepped attenuation control: -20 dB, -10 dB, off, +15 dB

AUDIO

Built-in speaker and external headphones with adjustable volume control
Tone style options: rising pitch, steady tone, off

DISPLAY

3.5” (4 cm) capacitive touchscreen
Screen brightness: high, medium, low

INPUT/OUTPUT

USB data port for software upgrades and file transfer

POWER

Input: USB internal charger
Runtime: >5 hours (typical)
Charge time: 1.5 hours per battery (typical, 80% charge), <3.5 hours per battery (typical, 95% charge)
Batteries (4 included with Advanced Kit): Nitecore 18650 Lithium Ion Rechargeable Battery Model #NL189, rated 3.7V, 3400mAh, 12.6Wh
External USB charger included

INPUT/OUTPUT

USB data port for software upgrades and file transfer

POWER

Input: USB internal charger
Run time: > 5 hours per battery (typical)
Charge time: 1.5 hours per battery (typical, 80% charge), < 3.5 hours per battery (typical, 95% charge)
Batteries (4 included): Nitecore 18650 Lithium Ion Rechargeable Battery Model #NL189, rated 3.7V, 3400mAh, 12.6Wh
External USB charger included

MECHANICAL

Case dimensions: 6.25 in x 14.9 in x 18.5 in (15.9 cm x 37.8 cm x 47.0 cm)
ANDRE dimensions: 3.4 in x 5.7 in x 1.0 in (8.7 cm x 14.4 cm x 2.5 cm)
ANDRE weight with batteries: 0.65 lbs (0.3 kg)
Case weight with ANDRE & all accessories: 11 lbs (5.0 kg)

THERMAL

Operating temperature: -10° C to 50° C
Battery charging temperature: 0° C to 35° C
Storage temperature: -20° C to 50° C
Note: extended storage at temperatures above 40° C could degrade battery performance and life.

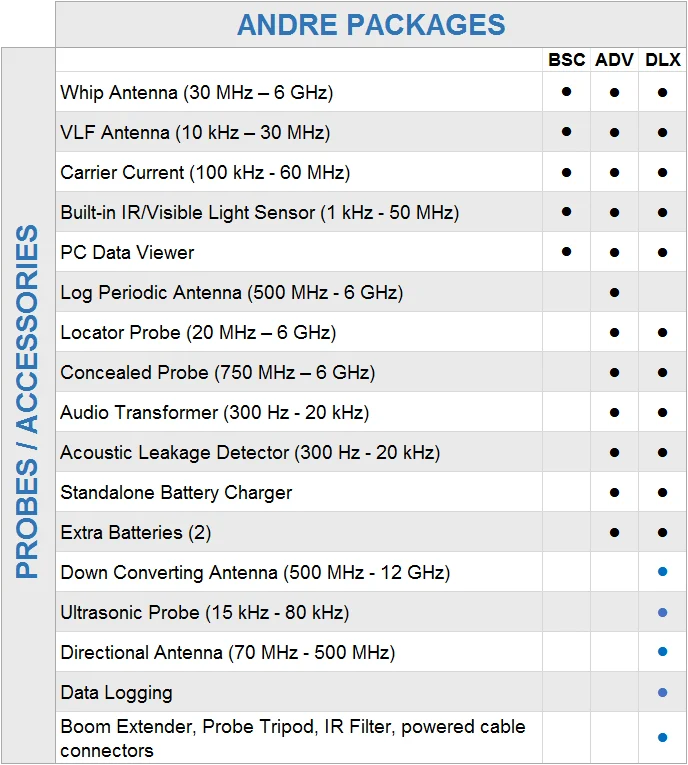

ANDRE Choose a package that suits your needs:

The ANDRE is a stock item and normally available for immediate dispatch.

For further information, demonstrations,  sales, and training, please call our London Office on +44 207 258 3771 or use links below

IPS OF MAYFAIR, the preferred equipment supplier of Governments, Law Enforcement Agencies and TSCM professionals around the globe

Downloads

NEW RELEASE FULL SPEC ANDRE DELUXE BROCHURE

ANDRE DELUXE NEAR-FIELD  BROADBAND RECEIVER Features

  • HISTOGRAM DISPLAY: The ANDRE features a signal strength histogram displaying RF levels over user-selected time intervals ranging from 5 seconds to 24 hours. Observe differences between digital, analog, and burst signals and set alert thresholds with audio and haptic feedback.
  • ZOOM VIEW: In zoom mode, only a 30 dB segment of the histogram is displayed. This reduced scale enables users to easily see small changes in RF signal activity.
  • SIGNAL INFORMATION AND BAND DETAILS: The ANDRE frequency counter automatically generates a signal list from the strongest signals. Signal frequencies are listed beginning with the strongest signal and can be designated as threatening, friendly, or unknown. Double-tapping a signal provides more details including band classification information.
  • AUDIO MODE: The ANDRE can demodulate and playback live analog audio. Ten-second audio files can be recorded, stored, and played back. The live audio screen displays a bar graph showing received signal strength.
  • DATA LOGGING (Deluxe feature): This new software feature provides histogram data for downloading to a PC and viewing on the ANDRE Data Viewer. Captured information includes time/date, signal amplitude, user settings, probes, chart duration and detailed frequency band information.



HOW TO USE REI ANDRE PROBES TO DETECT MULTIPLE TYPES OF HIDDEN ELECTRONICS AND LISTENING DEVICES

ANDRE DELUXE NEAR-FIELD  BROADBAND RECEIVER Applications
  • Technical Surveillance Countermeasures (TSCM)
  • Counter Surveillance
  • Broadband Detection
  • Near-field Transmission Detection
  • Intelligence Protection
  • Executive Protection
  • Surveillance Equipment Detection
  • Find Clandestine Eavesdropping devices
  • Professional ECM & TSCM equipment used by Government and Law Enforcement Agencies
  • Find Hidden Cellphones in Prisons and controlled areas
  • Detect Active Listening devices and covert electronics

REI ANDRE NEAR FIELD BROADBAND DETECTOR: Specifications

RF DETECTOR

Sensitivity:

  • -75 dBm for 3 GHz frequency (typical at RF input)

Stepped attenuation control: -20 dB, -10 dB, off, +15 dB

AUDIO

Built-in speaker and external headphones with adjustable volume control
Tone style options: rising pitch, steady tone, off

DISPLAY

3.5” (4 cm) capacitive touchscreen
Screen brightness: high, medium, low

INPUT/OUTPUT

USB data port for software upgrades and file transfer

POWER

Input: USB internal charger
Runtime: >5 hours (typical)
Charge time: 1.5 hours per battery (typical, 80% charge), <3.5 hours per battery (typical, 95% charge)
Batteries (4 included with Advanced Kit): Nitecore 18650 Lithium Ion Rechargeable Battery Model #NL189, rated 3.7V, 3400mAh, 12.6Wh
External USB charger included

INPUT/OUTPUT

USB data port for software upgrades and file transfer

POWER

Input: USB internal charger
Run time: > 5 hours per battery (typical)
Charge time: 1.5 hours per battery (typical, 80% charge), < 3.5 hours per battery (typical, 95% charge)
Batteries (4 included): Nitecore 18650 Lithium Ion Rechargeable Battery Model #NL189, rated 3.7V, 3400mAh, 12.6Wh
External USB charger included

MECHANICAL

Case dimensions: 6.25 in x 14.9 in x 18.5 in (15.9 cm x 37.8 cm x 47.0 cm)
ANDRE dimensions: 3.4 in x 5.7 in x 1.0 in (8.7 cm x 14.4 cm x 2.5 cm)
ANDRE weight with batteries: 0.65 lbs (0.3 kg)
Case weight with ANDRE & all accessories: 11 lbs (5.0 kg)

THERMAL

Operating temperature: -10° C to 50° C
Battery charging temperature: 0° C to 35° C
Storage temperature: -20° C to 50° C
Note: extended storage at temperatures above 40° C could degrade battery performance and life.

ANDRE Choose a package that suits your needs:

The ANDRE is a stock item and normally available for immediate dispatch.

For further information, demonstrations,  sales, and training, please call our London Office on +44 207 258 3771 or use links below

IPS OF MAYFAIR, the preferred equipment supplier of Governments, Law Enforcement Agencies and TSCM professionals around the globe

Downloads

NEW RELEASE FULL SPEC ANDRE DELUXE BROCHURE
