A Portable Spectrum Analyzer and Much More

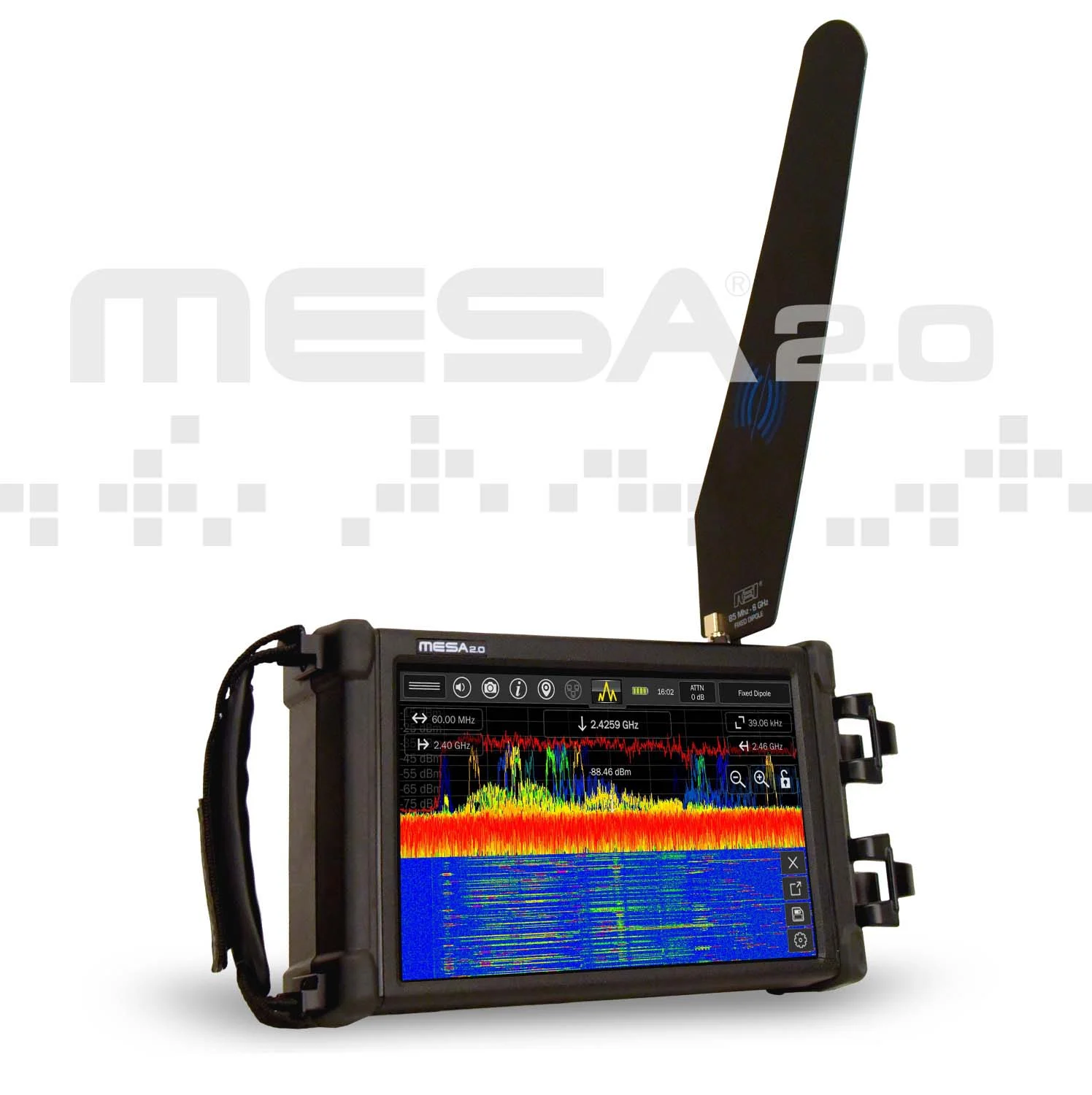

MESA^® 2.0 is a portable, handheld RF receiver that detects known, unknown, illegal, disruptive or interfering transmissions. MESA^® 2.0 has the portability and operational features not found on other spectrum analyzers. It provides tools, specifications, and design features for locating unknown signals throughout a wide frequency range up to 6 GHz (*12 GHz with the Downconverter antenna, and 18GHz with the 18GHz Downconverter antenna [sold separately]).

Efficiency: MESA^® 2.0 is easy to set up and puts sweep data at your fingertips with user-friendly navigation. Auto antenna recognition makes changing antennas a snap.

Usability: Full touchscreen control provides quick access to Spectrum, WiFi, Bluetooth^®, Mobile Bands, and (Patented) SmartBars™ modes.

Portability: Portable, handheld battery powered unit can sweep target areas using a full selection of fixed, bracket mounted, and handheld antennas/probes.

*Available with MESA^® 2.0 Deluxe

Product Images

Features

MESA^® 2.0 displays a full range of frequency data to 6GHz (12GHz with the Down Converter Antenna)
18GHz Downconverter antenna extends MESA’s frequency range to 18GHz
Sweep modes:

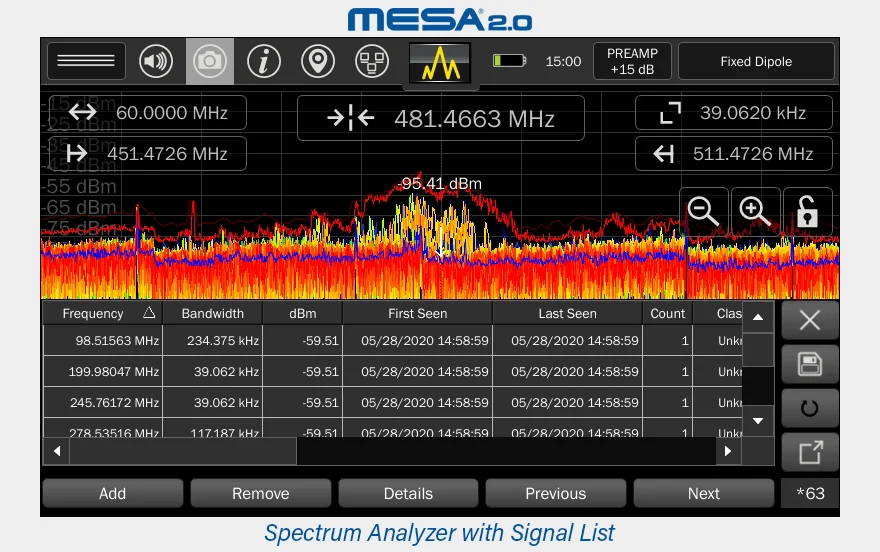

- Spectrum Analyzer: zoom, screen lock, frequency span, start/stop frequencies, resolution bandwidth, center frequency
  - I/Q Recording: captures raw I/Q data for external analysis

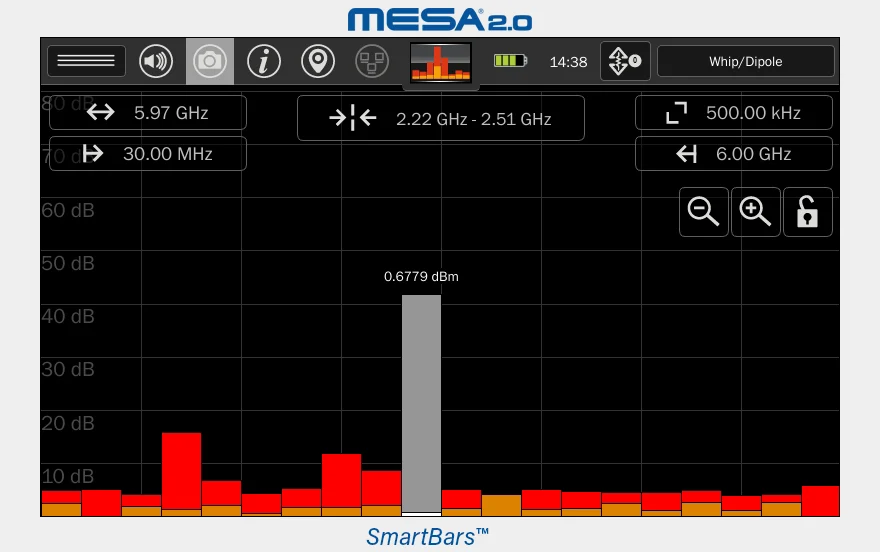

  - SmartBars™: displays new or increased RF energy in a bar graph
- Mobile Bands: displays RF in specific bands (i.e. Wifi, GSM, etc.), includes new Jammer/Interference Detection feature with current production models

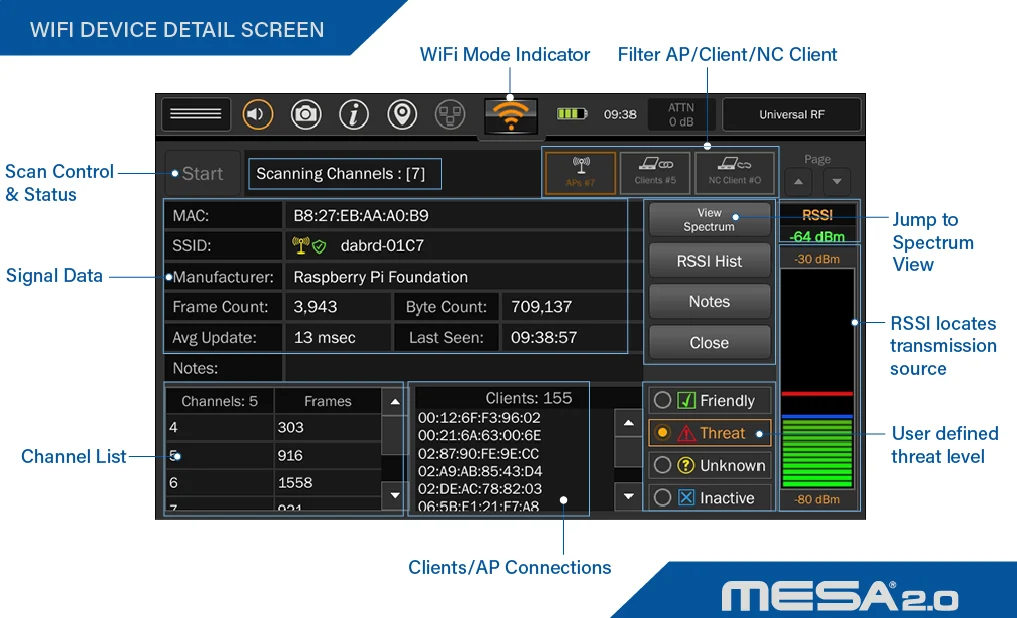

- WiFi: displays nearby access points, clients, RSSI, signal data, channel, and more
- Bluetooth^®: displays nearby pairing activity
Display Features: Persistence, Raster Waterfall, Spectral Power Histogram (RSSI), Peak Trace, Average Trace, Patent Pending Cached Peak
Display & Controls: 7in/18cm capacitive touch screen with brightness and zoom controls
MCP (Multi-Carrier Probe): Carrier Current, Visible Light/IR, Ultrasonic, Audio Transformer, and Acoustic Leakage
Antenna Probe Recognition automatically detects REI antennas/probes and adjusts display
Audio Demodulation: AM/FM
Alerts: haptic, audible, and visible
Remote Access: Ethernet port for VNC remote access
Signal List Generation: Manual or automatic depending on the mode
GPS: Removable USB, that captures and saves GPS data
Audio: Built-in speaker and external headphones with adjustable volume control.
Microphone port for Acoustic Leakage Probe and Audio Transformer
Data Ports: 2 USB 2.0 Type-A ports for software upgrades, file storage, file transfer

Applications

Detect RF WiFi, Bluetooth^®, cell phones, illicit transmissions
Interference detection & troubleshooting
RF research and development
Wireless industry developers
Intelligence protection
Communications Site Surveys
Eavesdropping detection
RF emissions analysis
Spectrum misuse investigation

Specifications

RECEIVER

Sweep Speed: >200 GHz/second
Operating Freq. Range: 10 kHz – 6 GHz /12 GHz (18GHz with 18GHz Downconverter antenna)
Resolution Bandwidth Variable depending on span: 0.0380 kHz to 312.5 kHz
Instantaneous Bandwidth: 25 MHz
DANL – Noise Floor: 312.5 kHz RBW with Pre-amp: -90 dBm, 9.765 kHz RBW with Pre-amp: -110dBm
Attenuation: 0 dB, 10 dB, 20 dB, Auto
Preamp: +15 dB
Detection Types: RF, Carrier Current, Acoustic Leakage, IR/Visible Light, Ultrasonic
Spurious Free Dynamic Range: 81.6 dB
Receiver Type: Swept-tuned Superheterodyne
Audio Demodulation AM/FM demodulation with filter options: Auto, 200 kHz, 20 kHz, 5 kHz
Input Port: QMA connector (RF input) for included and auxiliary RF antennas

POWER

Supply AC: 100-240V/50-60Hz; single rechargeable Li-ion battery (includes 1 spare)
Run Time: ~3 hours (typical) per battery
Charge time: ~3 hours per battery (typical)

MECHANICAL

Unit Dimensions: 5 x 8 x 2 in /13 x 20 x 5 cm
Unit Weight: 2.4lbs/1.1kg including battery

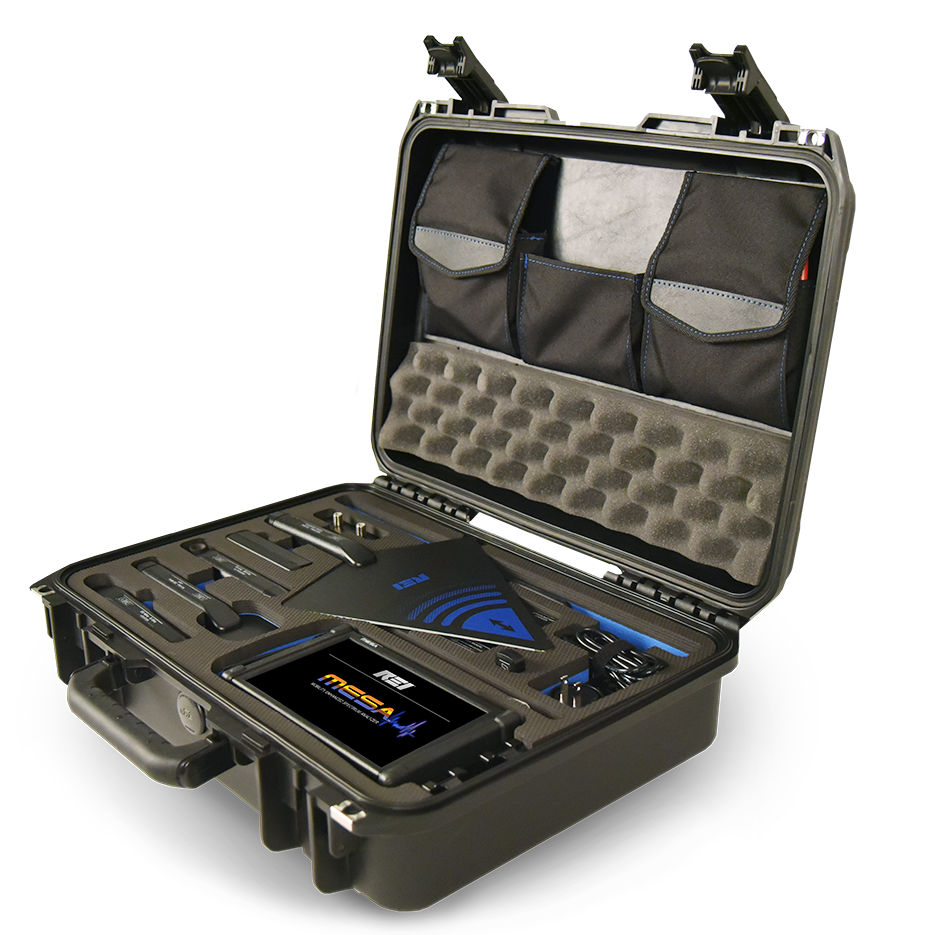

Case Dimensions: 6 x 15 x 18.5in / 16 x 38 x 47cm
Case/Contents Weight: 15lbs. / 6.8kg

ENVIRONMENTAL

Operating temperature: -10° to 53° C
Battery charging temperature: 5° to 37° C
Storage temperature: -20° to 60° C

Downloads

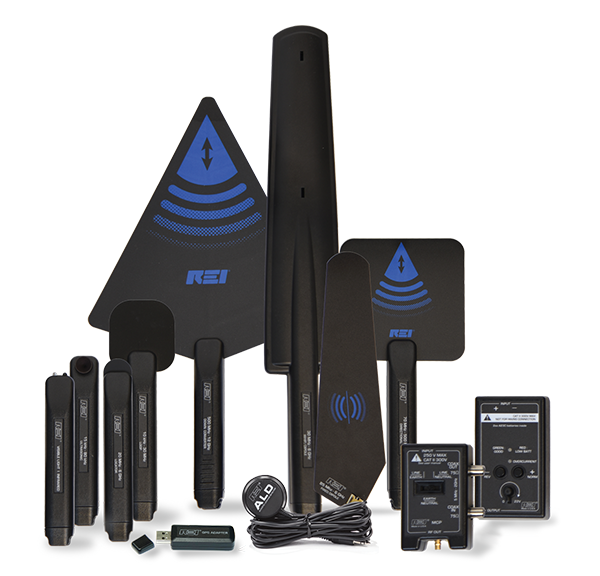

INCLUDED ACCESSORIES

Accessories vary depending on selected model. Two MESA models are available: Basic, and Deluxe

	Basic	Deluxe
Hybrid Whip Antenna (30MHz-6GHz)	•	•
Fixed Hybrid Antenna (85MHz-6GHz)	•	•
12GHz Downconverter Antenna (500MHz-12GHz)		•
Directional Flag Antenna (70MHz-500MHz)		•
VLF Loop (10kHz-30MHz)	•	•
Locator Probe (20MHz-6GHz)		•
Multi-Carrier Probe – MCP (100kHz-60MHz)	•	•
Visible Light/Infrared (10kHz-50MHz)		•
Ultrasonic Probe (15kHz-80kHz)		•
Audio Transformer (300Hz-20kHz)		•
Acoustic Leakage Detector (300Hz-20kHz)		•
GPS Dongle		•
External battery charger		•
2 Li-ion rechargeable batteries		•
