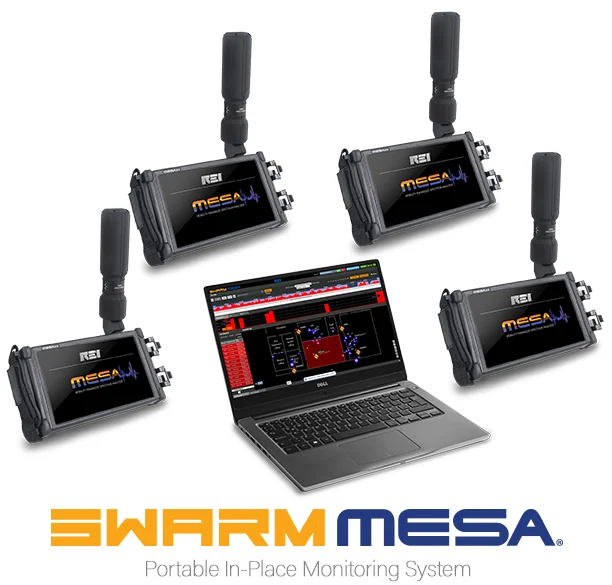

SWARM MESA® In-Place Monitoring System

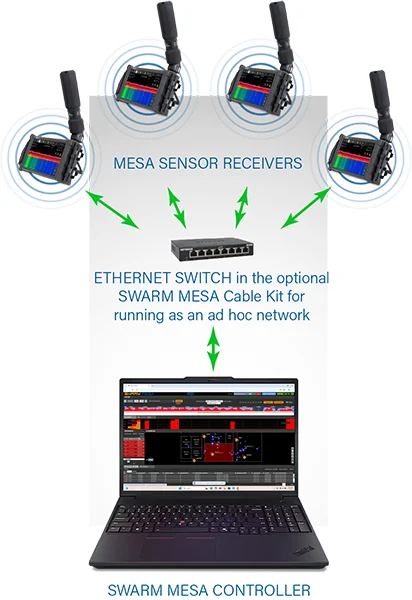

SWARM MESA® is a portable, easy to transport, in-place monitoring system networking multiple MESA® spectrum analyzers to a SWARM software controller.  The SWARM MESA® network provides continuous 24/7 RF and WiFi monitoring of structures, environments and events to detect and localize known, unknown and undesirable transmissions.

EFFICIENCY
SWARM MESA® collects short or long-term Missions detecting, alerting, logging, and analyzing RF/WiFi activity in Areas Of Interest (AOI). SWARM MESA® quickly observes where and when RF events occur and alerts when devices transmit. The MESA® spectrum analyzers can also be used to sweep AOIs capturing transmission data and locating suspect devices.

USABILITY
The SWARM software is pre-installed on a laptop, ready to network and begin collecting RF/WiFi data. SWARM MESA® is designed with ease of use in mind.

PORTABILITY
SWARM MESA® is easy to transport and deploy. It comes complete with everything needed to set up and operate, including four MESA® spectrum analyzers, antennas, cables, laptop and software packed in hard shell transportable cases.

Request Price Quote
View Features & Applications

Product Images

FEATURES

  • Provides live short/long term 24/7 RF & WiFi monitoring
  • Portable IPMS
  • Modular for adapting to target environment
  • Inside/outside Geo-Location
  • Each MESA independently sweeps 6GHz 33 times a second (200 GHz/sec)

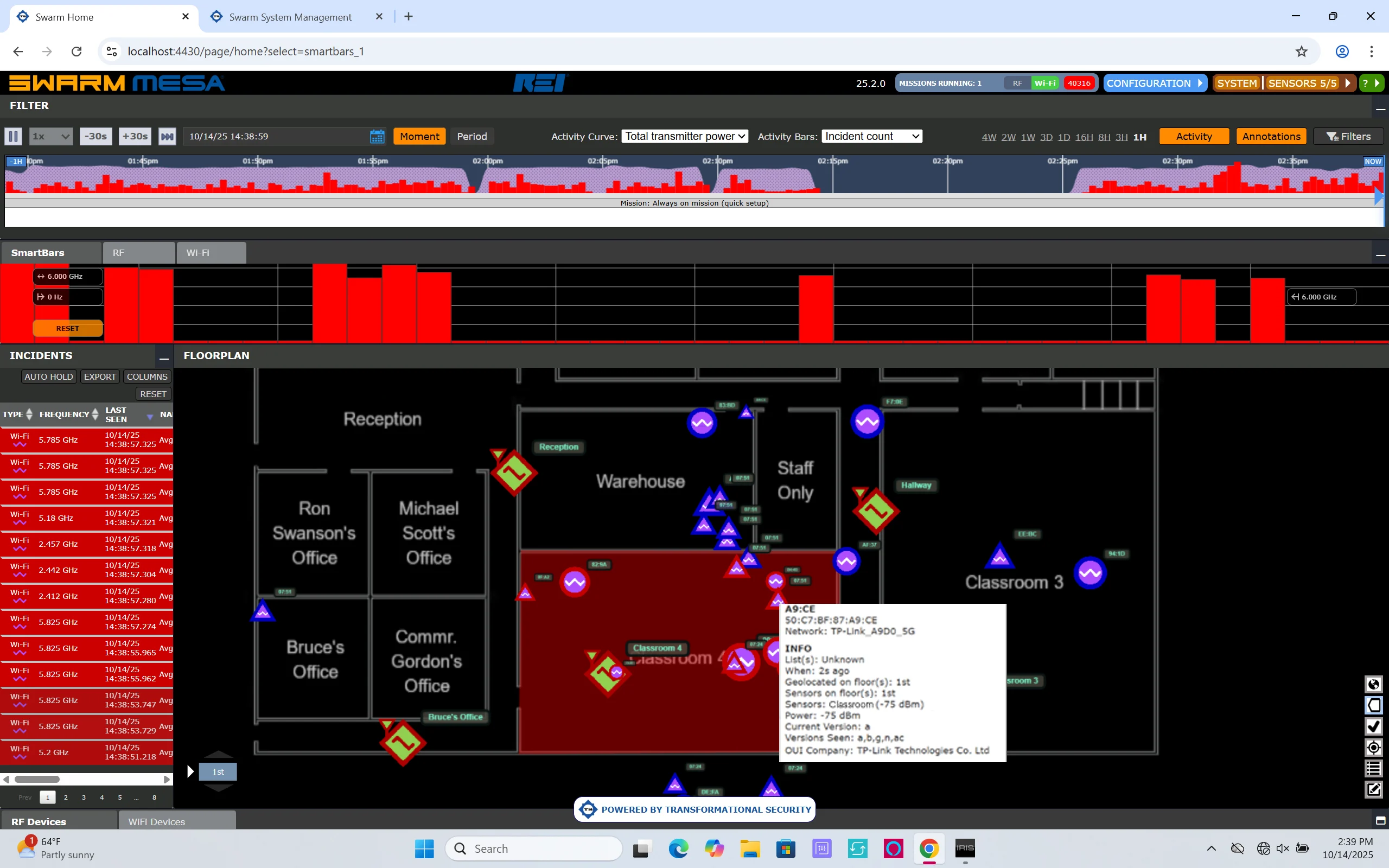

  • Signal localization (heat mapping)
  • Signal classification
  • Live monitoring
  • Continuous event recording
  • Playback, Data logging and event analysis
  • Mission scheduling
  • Quick setup guide
  • Alerts warnings and notifications
  • MESAs can be used to physically locate devices
  • Part of a layered TSCM strategy
  • Expandable
  • Cable Kit – included with SWARM MESA®

APPLICATIONS

  • Technical Surveillance Countermeasures (TSCM) – detecting RF/WiFi eavesdropping transmitters
  • Monitoring sensitive rooms or facilities for RF emissions
  • Monitoring for unauthorized wireless or cellular activity
  • Continuous surveillance of advanced threats
  • Preventing unauthorized IOT devices from stealing operational data
  • Monitoring power plants, pipelines, or refineries for interference
  • Spectrum analysis
  • Executive Protection

SPECIFICATIONS

SWARM MESA Kit

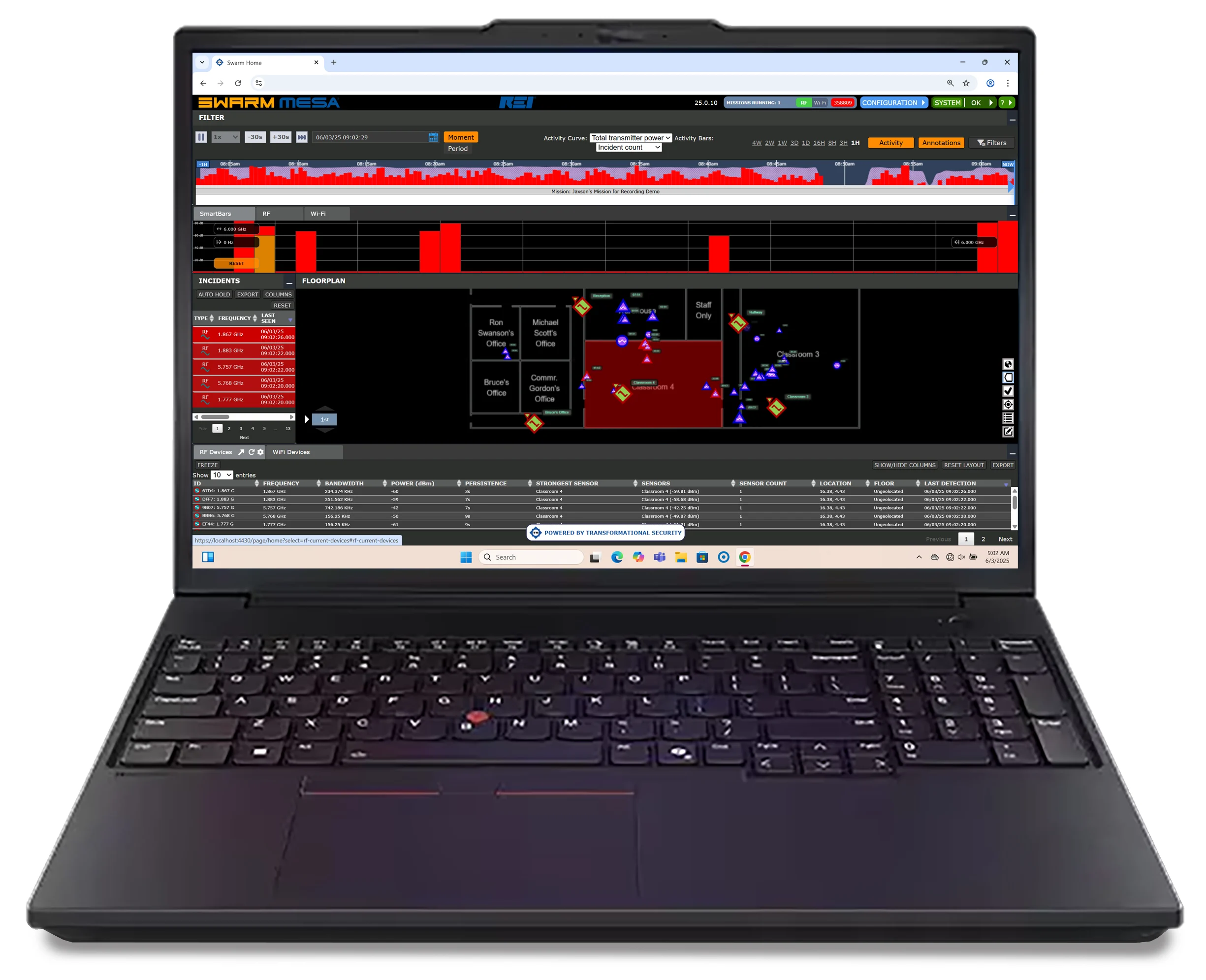

SWARM installed Laptop (Controller)
Power adapter: 135W USB-C Slim (3-pin)
Dimensions: 14 x 10 x .083in / 36 x 25 x 2cm
Weight: 4lbs./1.82kg
Operating System: Windows 11 Pro

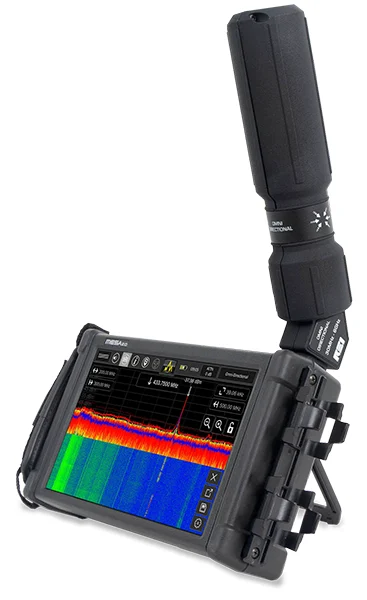

4 MESA® Spectrum Analyzers:  See MESA 2.0

4 Fixed Omnidirectional Antennas:

•  Frequency: 30MHz to 6GHz
•  Connector:  QMA

4 Li-ion batteries: 10.8V, 3350mAH, 36.20Wh
4 Power Supply Adapters: 15V, 3A w/int’l adapters

Optional antennas available

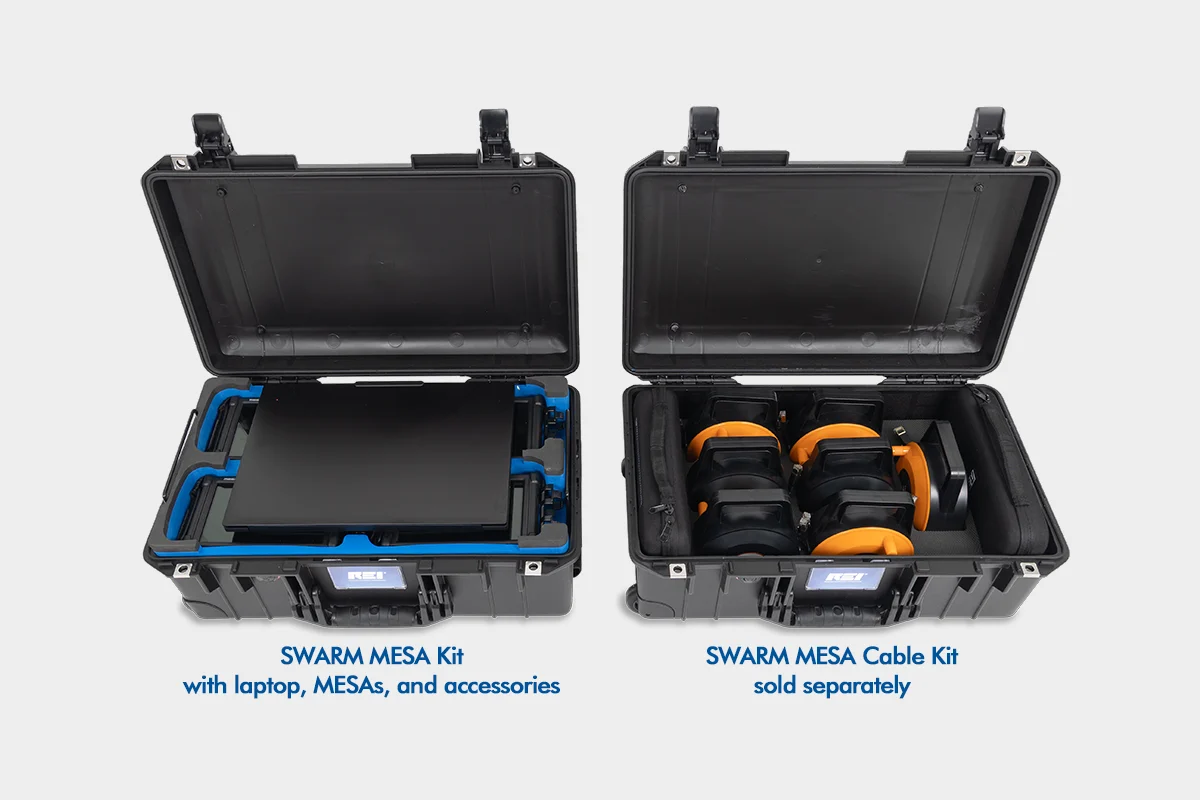

Hardshell case with custom cut foam insert
Weight: 30lbs./14kg.
Case dimensions: 22 x 14 x 9in / 56 x 36 x23cm

________________________________________
SWARM MESA Ethernet Cable Kit – sold separately
Ethernet switch:

  • Gigabit
  • DC input/12v /0.5A
  • 10/100/1000Mbps ports : 8

Retractable Ethernet cables (7):

  • Length: 50ft/15m
  • Spool dimensions : 3 x 5.1 x 6.5in/8 x 13 x 58cm

Hardshell case with custom cut foam insert
Case weight: 22lbs/10kg
Dimensions: 22 x 14 x 9in / 56 x 36 x 23cm

Downloads

SWARM MESA Brochure (652 kB)
SWARM MESA Owner’s Manual (3.9 MB)

Included Accessories

SWARM MESA® Kit
Laptop with SWARM MESA® installed
4 MESA® Spectrum Analyzers:  See MESA® 2.0
4 Fixed Omnidirectional Antennas
4 Li-ion batteries
4 Power Supply Adapters
6 Patch cables
5 WiFi USB adapters
Hard shell case with custom foam insert

SWARM MESA® Cable Kit
Gigabit ethernet switch
7 Retractable  50ft / 15m ethernet cables
Hard shell case with custom foam insert
