Interchangeable NLJD Antennas

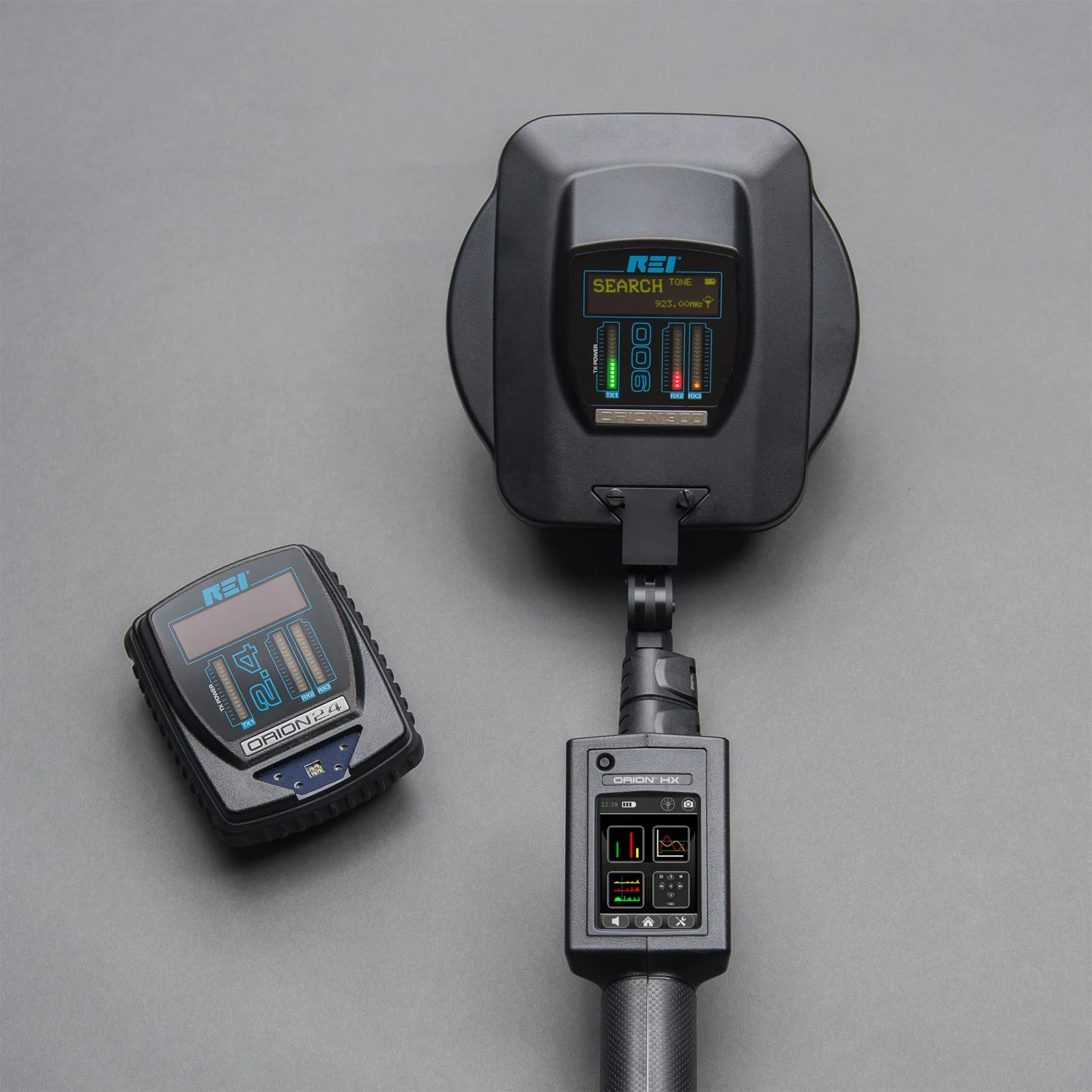

The hand-held ORION HX Deluxe Non-Linear Junction Detector (NLJD) has interchangeable 2.4 GHz and 900 MHz antenna heads. The ORION HX Deluxe NLJD is used to sweep areas for electronic semi-conductor components. In this way, the ORION HX Deluxe NLJD detects and helps to locate hidden electronics or eavesdropping devices regardless of whether the electronic device is turned on.

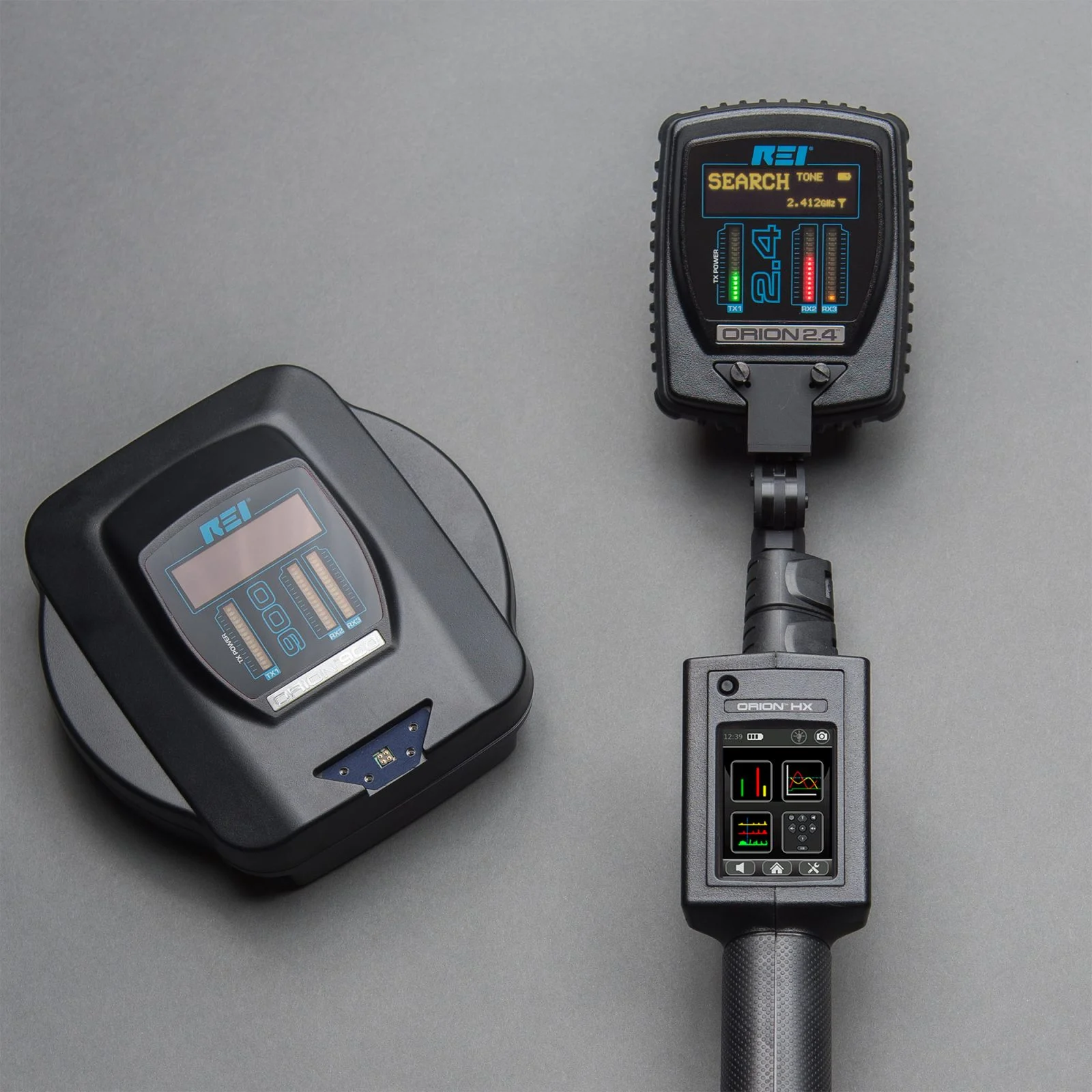

Efficiency: users can detect both small, modern circuitry in office environments with the 2.4 antenna and older, less refined circuitry through dense materials with the 900 antenna

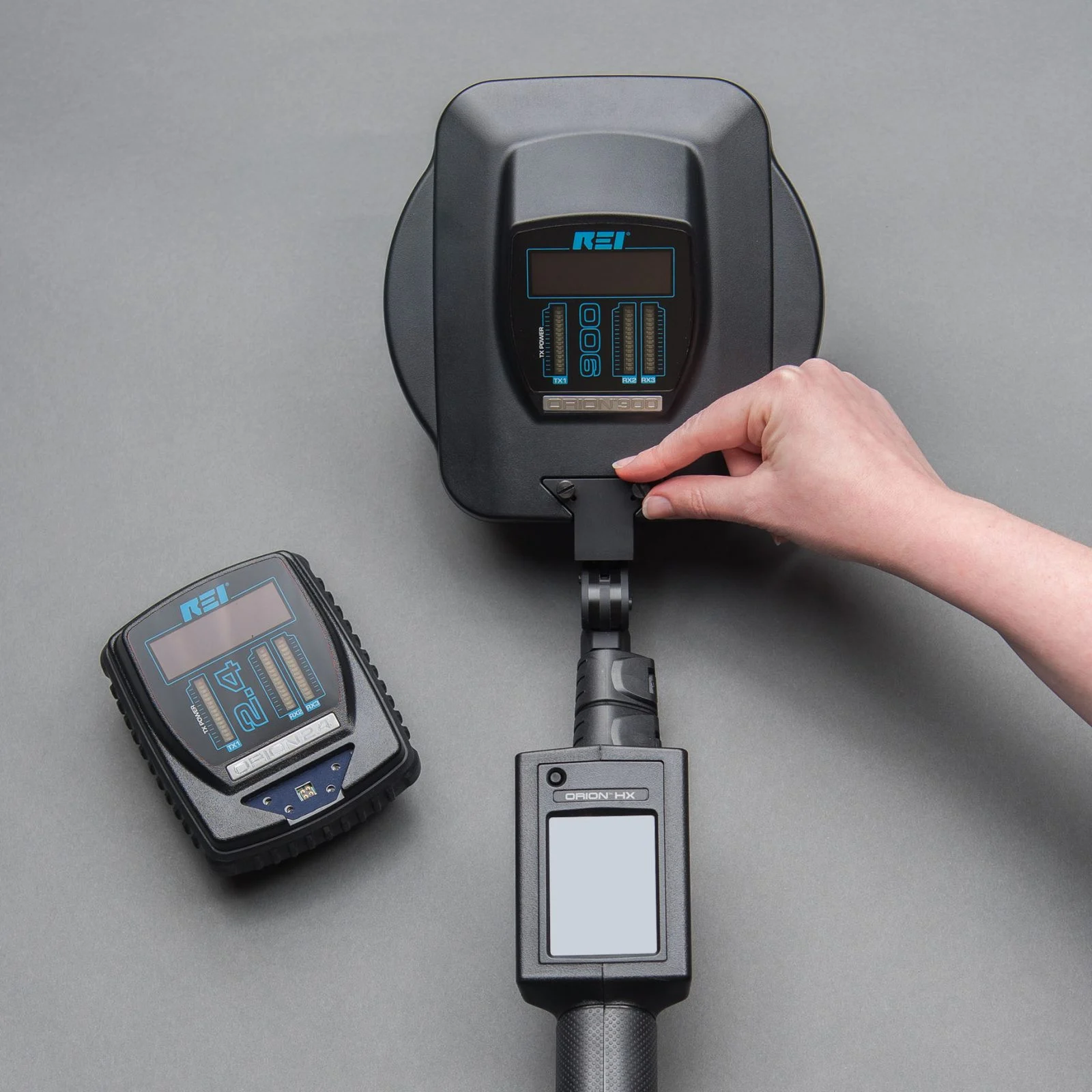

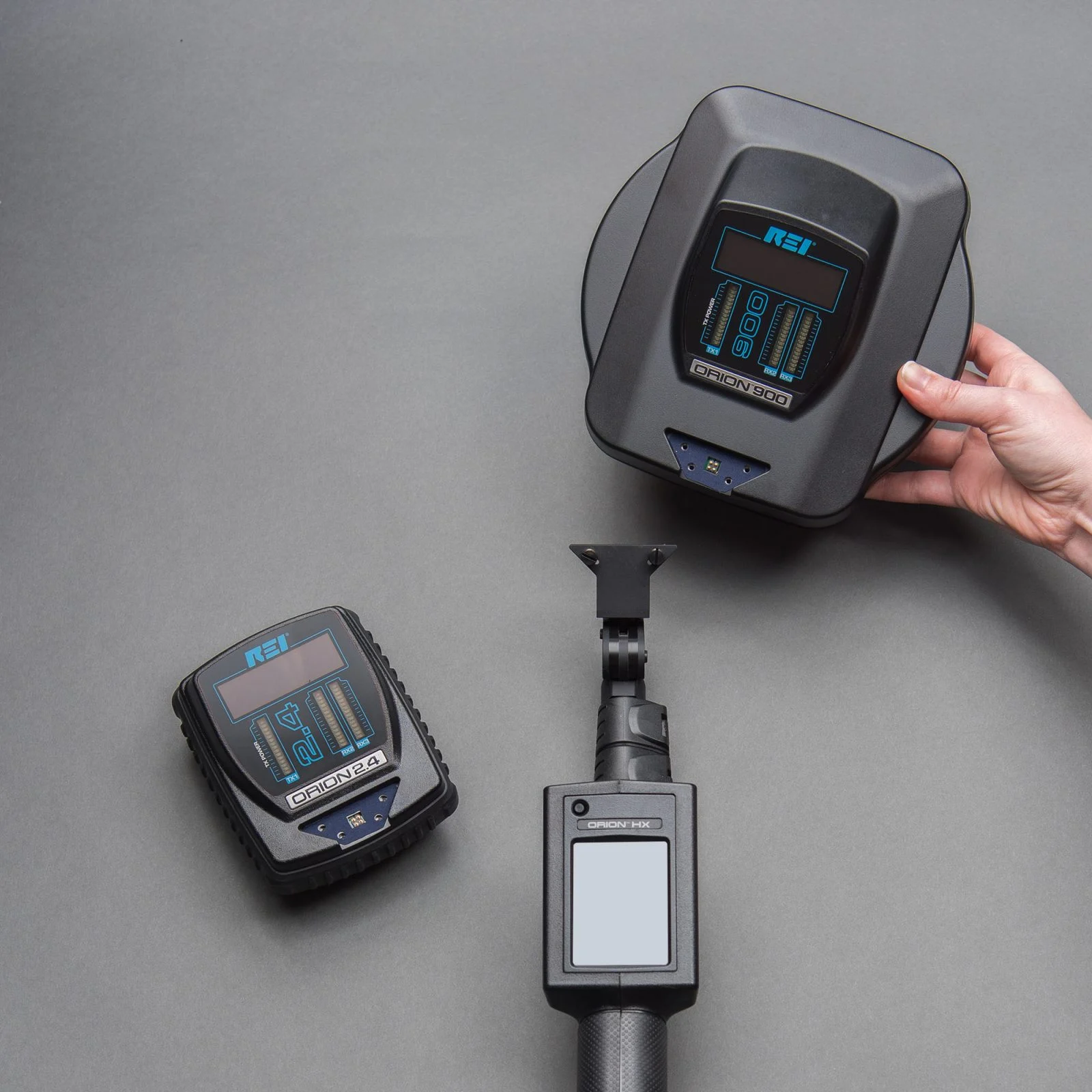

Usability: antenna heads are easily exchanged by simply turning a pair of thumb screws

Portability: lightweight design with convenient carrying case

Gallery Images

Features

Digitally modulated transmit signal
Correlated 2nd & 3rd harmonic response
Adjustable DSP gain
Histogram graph displays continuous history of harmonic response and power adjustment
Spectrum View (HX models) shows 2nd and 3rd harmonic spectrum graphs in several display options
Touch screen displays the full RF spectrum for transmit, 2nd, or 3rd frequency ranges
1.25 MHz-wide bandwidth transmit signal increases detection sensitivity
Alert tones and haptic (vibration) alert can be selected to alert when signal levels surpass the trip levels
Line-of-sight antenna mounted display and LED head lamp allows user to focus eyes on sweeping target and display at same time, even in dark areas
No pole or cable assembly required with integrated telescoping pole
Circularly polarized transmit and receive antenna removes the risk of missing a threat due to incorrect antenna polarization

Applications

Technical Surveillance Countermeasures (TSCM)
Counter Surveillance
Non-Linear Junction Detection
Locating Hidden Electronics
Locating Electronic Contraband
Intelligence Protection
Executive Protection
Eavesdropping Detection
Surveillance Equipment Detection
Electronic Surveillance Detection

Specifications

TRANSMITTER

2.4 antenna transmit power: 3.3 W; G model: 6.6 W
900 antenna transmit power: 1.4 W; G model: 3.2 W
Power control: manual or auto control
2.4 antenna frequency band: 2.404 GHz – 2.472 GHz
900 antenna frequency band: 905 – 925 MHz; G model: 840 – 960 MHz
Transmit channels: manual or auto selection, more than 60 available
Transmit modulation: pulsing, digital spread spectrum, 1.25 MHz bandwidth
Please note: G model authorized for use only by agencies, persons and entities not restricted by FCC & IC. Both models are CE marked for public safety and security.

RECEIVER

Simultaneous 2nd & 3rd harmonic receive
Digitally correlated
2.4 antenna frequency band:

Second Harmonic (4.808 GHz – 4.944 GHz)
Third Harmonic: (7.212 GHz – 7.416 GHz)

900 antenna frequency band:

Second Harmonic (1810 MHz – 1850 MHz); G model (1680 MHz – 1920 MHz)
Third Harmonic: (2715 MHz – 2775 MHz); G model (2520 MHz – 2880 MHz)

2.4 antenna sensitivity: -140 dBm for both harmonics
900 antenna sensitivity: -130 dBm for both harmonics

DISPLAY

Handle-mounted 2.7 inch touch screen controller display
Antenna-mounted display
Bar graph display for transmit power level, 2nd harmonic level, 3rd harmonic level, data field display, for other information (operation mode, low battery, volume, DSP gain, etc.)

MECHANICAL

Extension lengths: 16-51 in (40.6 – 129.5 cm)
Case dimensions: 6.25 in x 14.9 in x 18.5 in (15.9 cm x 37.8 cm x 47.0 cm)
ORION HX Deluxe dimensions (2.4 antenna): 22.4 in x 3.75 in x 3 in (57 cm x 9 cm x 7.5 cm)
ORION HX Deluxe dimensions (900 antenna): 23 in x 3.75 in x 3 in (58.4 cm x 9 cm x 7.5 cm)
Overall Extended Length: 58 in (147 cm)
ORION HX Deluxe weight w/ battery (2.4 antenna): 3 lbs (1.4 kg)
ORION HX Deluxe weight w/ battery (900 antenna): 3.6 lbs (1.6 kg)
ORION HX Deluxe case and contents weight 14 lbs (6.4 kg)
HX touchscreen Ingress Protection (IP) rating : IP63

BATTERY

Input AC: 100-240 V, 50-60 Hz
Run time: >4 hours per battery (typical)
Charge time: 2.5 hours per battery
Batteries: Lithium ion rechargeable (2 included)
The supplied battery pack: RRC Power Solutions Lithium Ion Rechargeable Battery pack Model #RRC2040

THERMAL

Operating temperature: -10 to 50°C
Battery charging temperature: 5 to 37°C
Storage temperature: -20 to 60°C
Note: extended storage at temperatures above 40°C could degrade battery & OLED display performance and life.

Downloads

Accessories

Power

Lithium-ion Rechargeable Battery – 2950mAh
A 2950 milliampere hour lithium-ion battery for the following REI products: ORION Non-Linear Junction Detectors, VPC 2.0 Video Pole Camera, & the VPC 2.0 Deluxe.
Part Number: R-00001

Lithium-ion Smart Battery Charger
The Lithium-ion Smart Battery Charger provides additional charging capabilities to the OSCOR Spectrum Analyzers, TALAN 3.0 Telephone and Line Analyzer, ORION Non-Linear Junction Detectors, & VPC 2.0 Video Pole Camera.
Part Number: 6-00079
