The OSCOR Blue is a portable spectrum analyzer with a rapid sweep speed and functionality suited for detecting unknown, illegal, disruptive, and anomalous rogue transmissions across a wide frequency range. The OSCOR Blue Spectrum Analyzer is designed to detect illicit eavesdropping signals, perform site surveys for communication systems, conduct radio frequency (RF) emissions analysis, and investigate misuse of the RF spectrum.

Efficiency: sweeps 24 GHz in one second to quickly detect transmitting electronic surveillance devices and ensure that spectrum activity is captured

Usability: captures comprehensive signal activity without missing signals due to limited antenna range or from having to switch external antennas

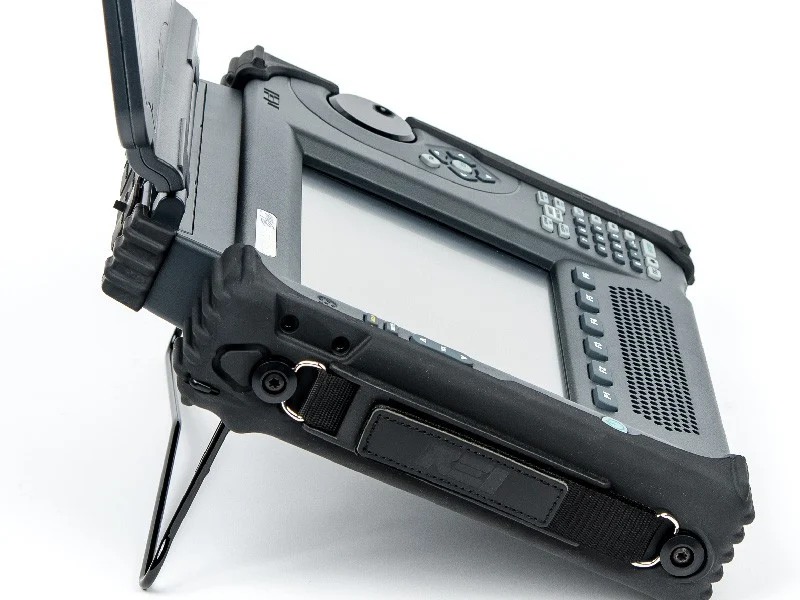

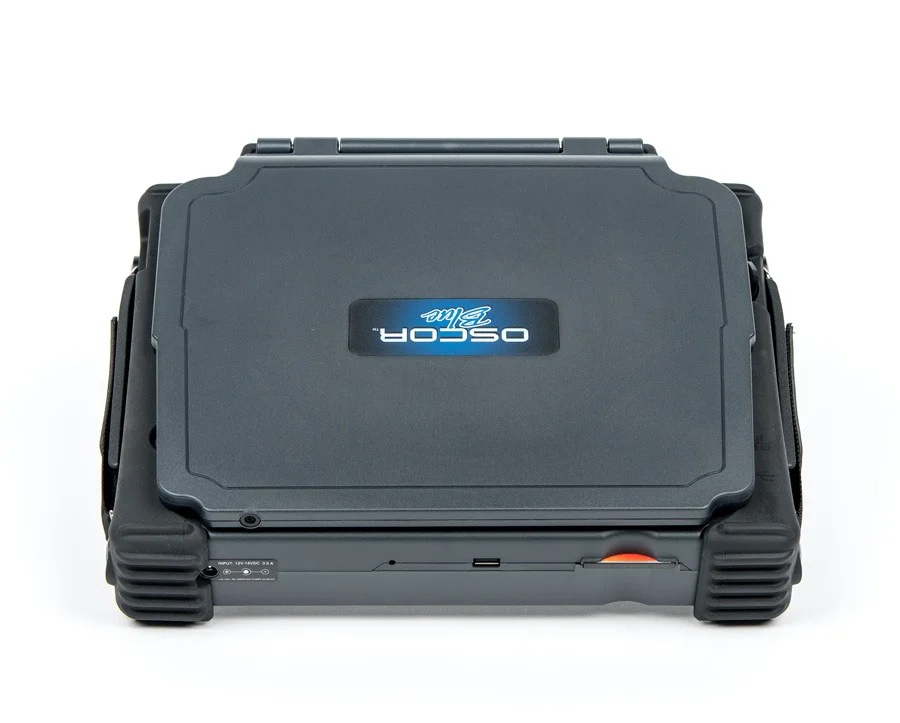

Portability: complete integrated spectrum analyzer system with built-in antennas and analysis software, small and hand-held for easy mobility.

Request Price Quote
View Features & Applications

Product Images

Features

  • OSCOR Blue sweeps 24 GHz in 1 second in 12.2 kHz steps. Fast sweep time, built-in antennas, and on-board software make the OSCOR Blue easy and quick to deploy, optimizing total operational speed.
  • Seamless real-time spectrum visibility from 10 kHz to 24 GHz using the integrated auto-switching multi-antenna system.
  • The OSCOR Blue is lightweight (9.6 lbs./4.4 kg), small and hand-held for easy mobility through target areas while collecting trace data.
  • REI’s trace analysis functionality adds dimension by providing full analysis of trace data on-board. Perform trace analysis on-screen without the need for a laptop.
  • OSCOR Blue can subtract a reference trace from a target sweep trace, and then create a signal list from the difference trace, very quickly showing a list of signals unique to the target area.

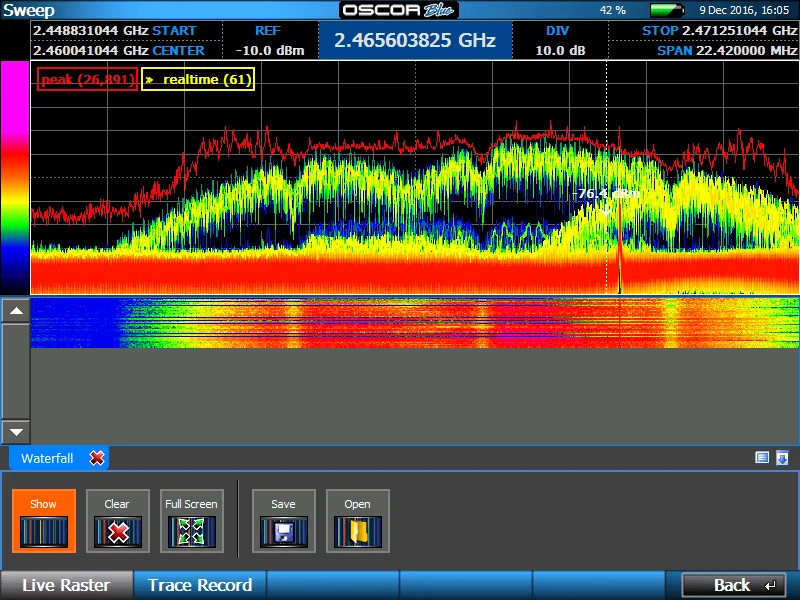

  • Waterfall analysis captures and records signal peak traces over time for historical analysis of spectrum activity.
  • Signals are easily located based on RSSI level change and near field locating function.

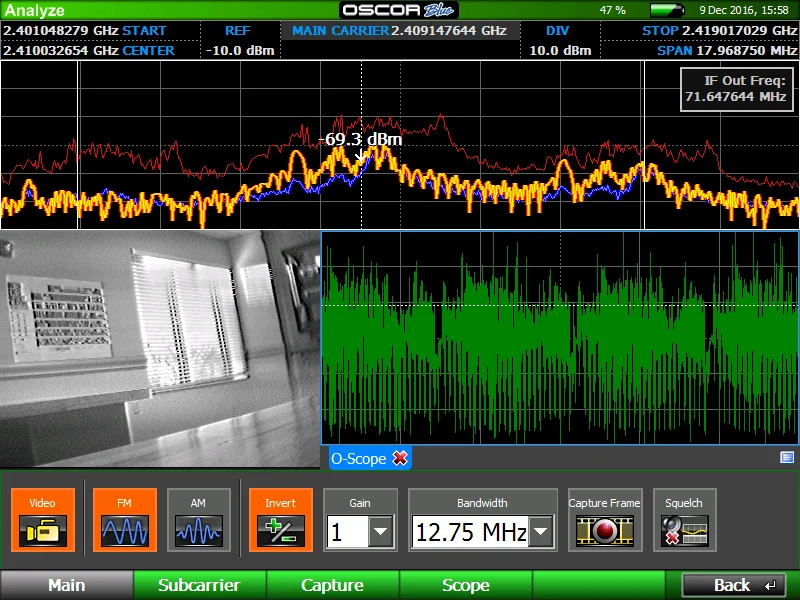

  • Continuous spectrum update while using built-in suite of demodulators (audio, video).
  • OSCOR Blue includes a Multi-Purpose Probe that plugs into the Auxiliary port for capturing carrier current, IR, CATV (F Connector), VLF Antenna.

Applications

  • Technical Surveillance Countermeasures (TSCM)
  • Counter Surveillance
  • Radio Frequency (RF) Detection
  • Radio Frequency (RF) Analysis
  • Spectrum Analysis
  • Signal Analysis
  • Intelligence Protection
  • Executive Protection
  • Eavesdropping Detection
  • Surveillance Equipment Detection
  • Electronic Surveillance Detection

Specifications

RF SYSTEM – 24 GHz
Frequency:  24 GHz Model (OBL-24): 10 kHz to 24 GHz
Displayed Average Noise Level (DANL) (25 kHz Resolution Band Width)



  • Without preamp: -100 dBm
  • With preamp: -110 dBm

Sweep speed: 24 GHz/second
Preamp: DC-8 GHz: 10 dB
Attenuation: DC-24 GHz: 0 dB, -10 dB, -20 dB, -30 dB
Dynamic Range:

  • Min/Max Range: 90 dB
  • SFDR: 80 dB
AUDIO SYSTEM
Demodulation types: AM, FM
Filter sizes: 800 khz, 200 kHz, 12.5 kHz, 6.25 kHz, 2 kHz
Subcarrier filters: 6.25 kHz, 12.5 kHz, 200 kHz
Headphone output (low leakage headphones included)
Built-in speakers
VIDEO SYSTEM
Formats: NTSC, PAL, SECAM
Demodulation: AM, FM
Filter sizes: 12.75 MHz, 6.375 MHz
Subcarrier filters: 6.25 kHz, 12.5 kHz, 200 kHz
ANTENNA SYSTEM
Built-in auto switching antenna system
Frequency: 24 GHz Model (OBL-24): 10 kHz (useable) to 24 GHz
INPUTS/OUTPUTS

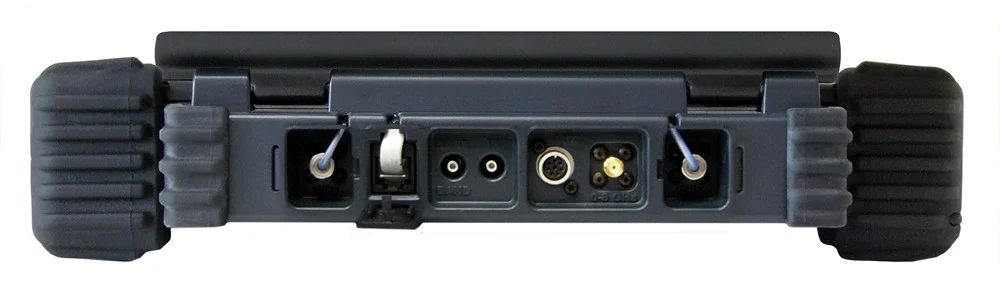

Aux RF in: 10 kHz to 8 GHz
IF out: 25 MHz wide centered at 75 MHz
Baseband out: DC – 6 MHz
Expansion: Aux Control Port for MPP
USER INTERFACE
Integrated touch screen with 8.4” display
Soft keys and rotary optical encoder
USB Port (A type): for peripherals (Keyboard, Mouse)
Ethernet port for VNC remote access
POWER SUPPLY
Universal power supply included: 100-240 VAC, 50-60 Hz
Removable battery: Rechargeable Lithium ion, 4-hour runtime (typical)
EXTERNAL STORAGE CAPABILITY
Compact Flash (CF) slot
USB-A port
MECHANICAL
Dimensions: 11.5 in x 13.2 in x 3.0 in (29.2 cm x 33.5 cm x 7.6 cm)
Unit weight with battery: 9.6 lbs (4.4 kg)
Case dimensions: 14.9 in x 19.5 in x 5.5 in (37.8 cm x 49.5 cm x 14 cm)

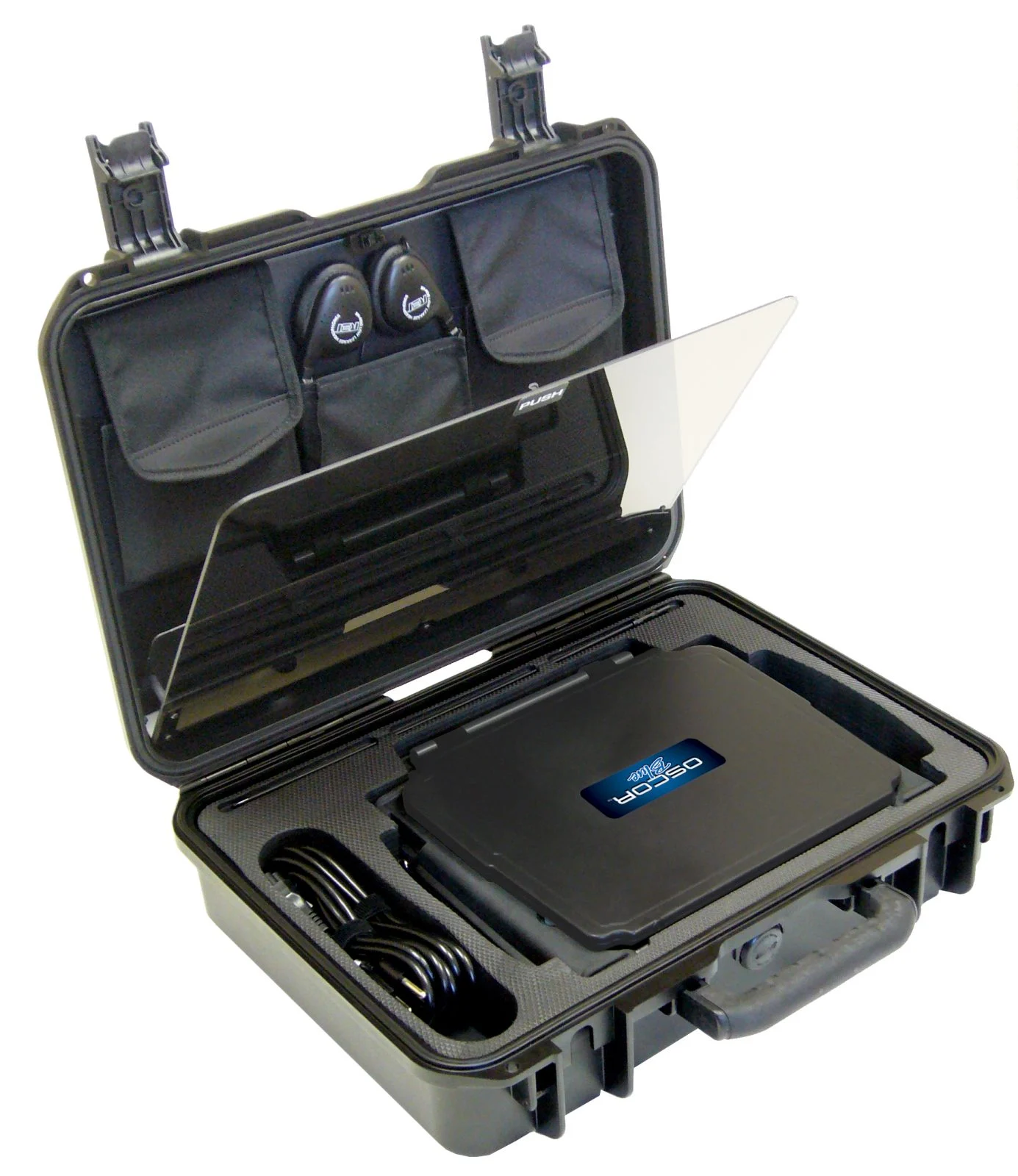

Case weight with unit and accessories: 21.0 lbs (9.5 kg)
THERMAL
Operating temperature: 0° C to +50° C
Note: It is recommended to run the unit on battery power above +40°C. The supplied AC adapter’s operating temperature is 0°C to +40°C.

Downloads

OSCOR Blue Owner’s Manual
OSCOR Blue Brochure

Accessories

Probes & Antennas

Whip Antenna
The whip antenna plugs into the extension connector on top of the antenna panel to improve low frequency reception.
Part Number:  6-00060
Directional Antenna
The directional antenna makes locating transmitters easier and is handheld or can be clipped to the antenna panel.  Range: 1.5 GHz to 8 GHz
Part Number:  9-00008
Multi-Purpose Probe
The MPP plugs into the auxiliary port for capturing carrier current signals, coax, VLF magnetic loop, infrared, and visible light transmissions.
Part Number:  9-00004

Power

Lithium-ion Rechargeable Battery – 8.7Ah
An 8.7 amp hour lithium-ion battery for the following REI products: OSCOR Green, OSCOR Blue, & TALAN 3.0.
Part Number:  0-RB250
