OSCOR® Max

Next Generation Spectrum Analyzer

The completely new portable OSCOR Max spectrum analyzer covers 10kHz to 43GHz automatically switching across the built-in antenna system, sweeping 1100GHz per second at 10kHz resolution. The physical design, large touchscreen and powerful GUI display signal data for known, unknown, interfering, disruptive or unauthorized signals and wireless threats of all types, including WiFi and Bluetooth.

Efficiency:  Little to no setup is required, simply turn it on. When OSCOR Max boots, it starts sweeping the full 43 GHz span using the built-in auto-switching antenna panel.  OSCOR Max is optimized to shorten the time needed to find challenging threats.

Usability: OSCOR Max has a comprehensive set of on-board analysis tools including standard spectrum analyzer functions, Trace Math, Spectrogram Waterfall Record, Wi-Fi and Bluetooth device detection, SmartBars™, Discrete Bands, I/Q Record.

Portability: Weighing ~10 lbs/4.7 kg, OSCOR Max offers advanced capabilities, and is portable enough to move about target areas collecting trace data.

Request Price Quote
View Features & Applications

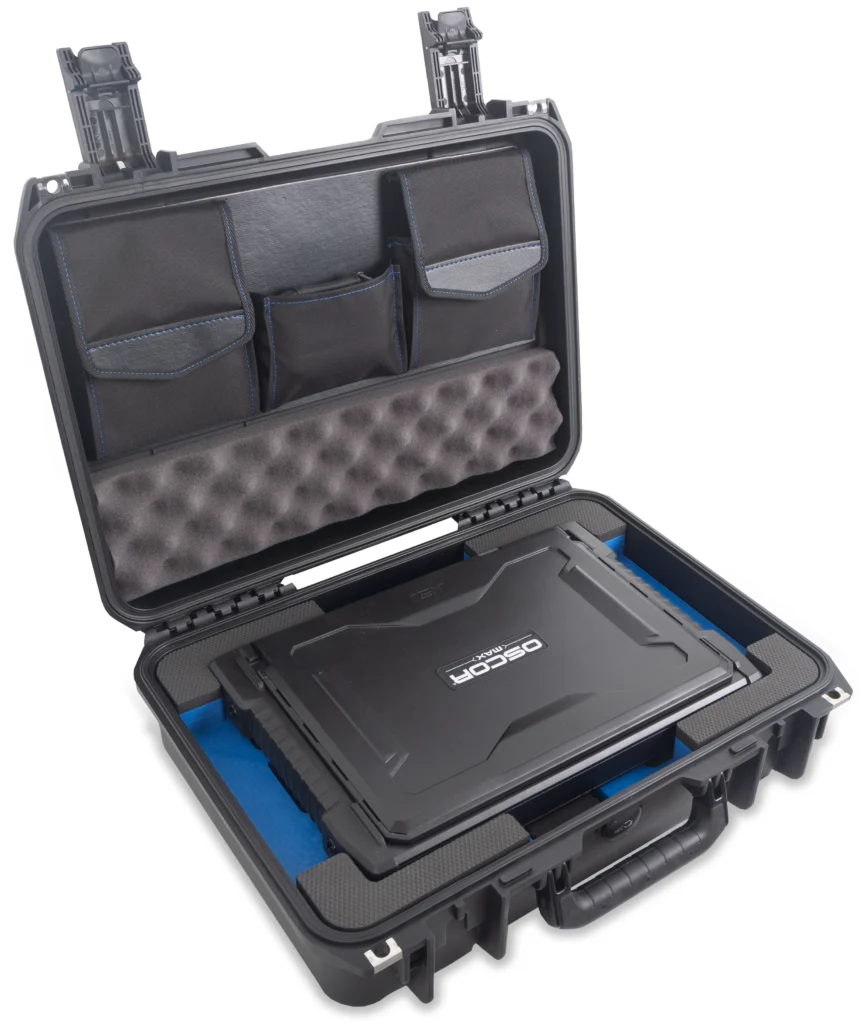

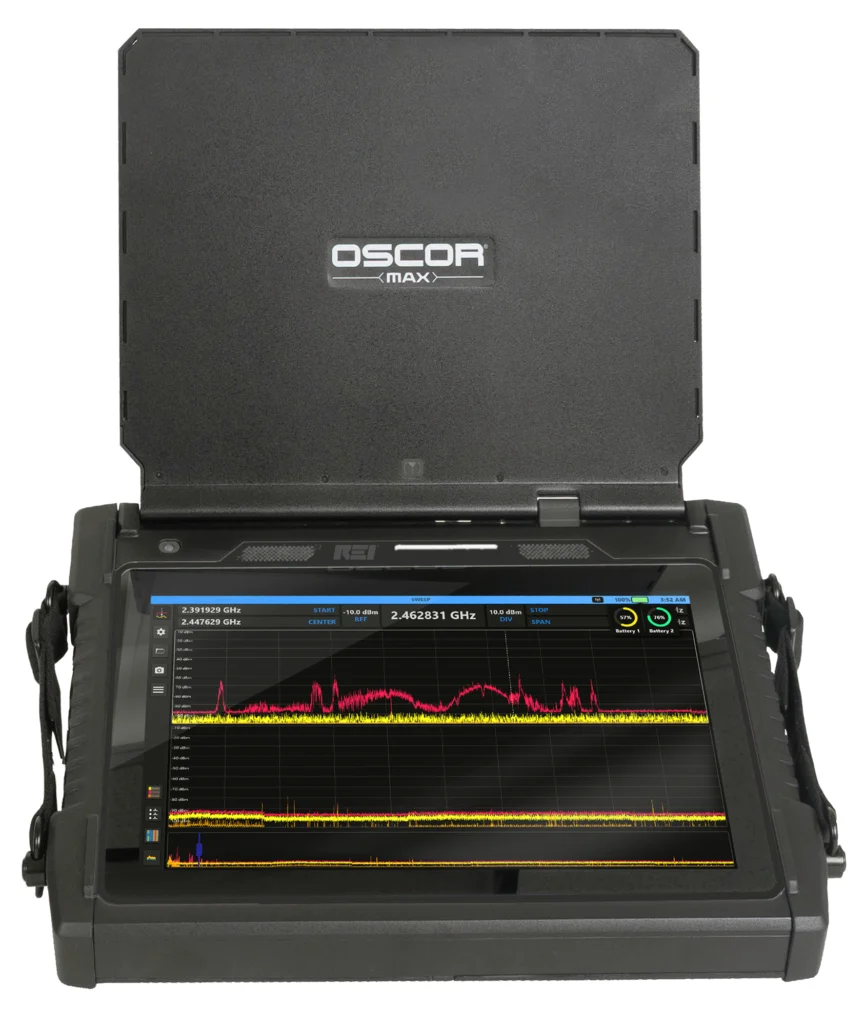

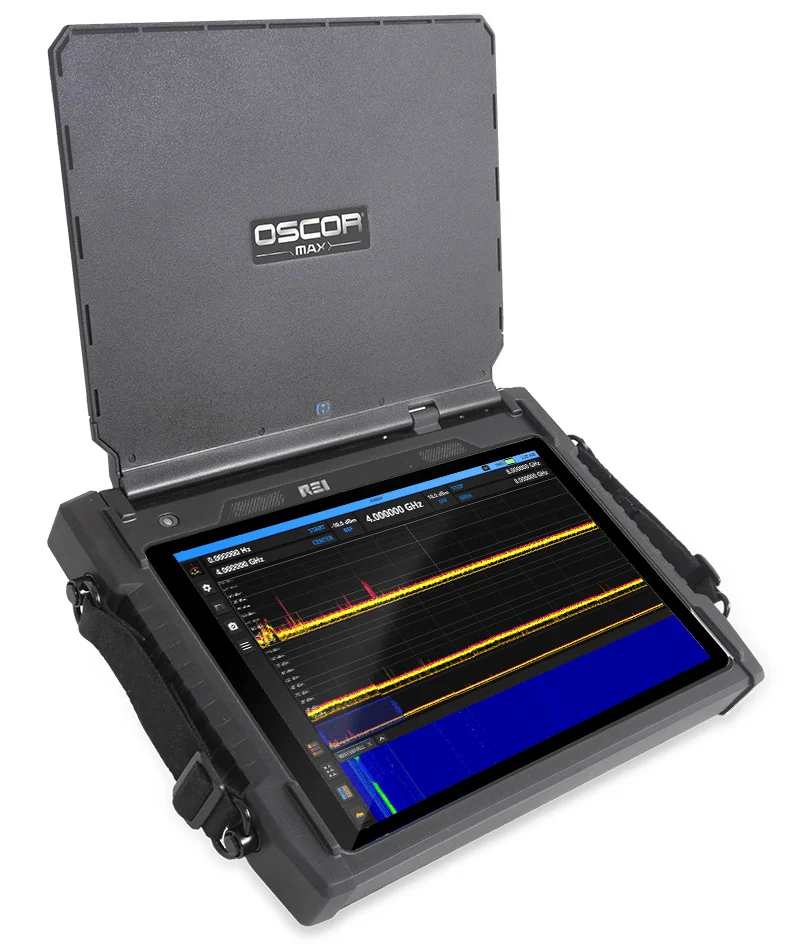

Product Images

Features

  • The OSCOR Max auto-switching antenna provides uninterrupted spectrum visibility from 10 kHz – 43 GHz
  • Sweeps 1100 GHz per second at 10 kHz resolution for the full 43GHz span 25.6 times per second, >107 million data points per second
  • The Built-in auto switching antenna system (10 kHz – 43 GHz) performs 125 antenna switches per second
  • Able to cover large frequency spans at high sweep speed and resolution for quick RF environment analysis
  • OSCOR Max is portable (weighs ~10 lbs./4.7 kg) for easy mobility through target areas while collecting trace data
  • Detects and identifies individual WiFi devices (access points, connected client devices and devices probing for an access point)
  • Patented SmartBars™ displays new signals or increased energy in an easy to use bar graph format relative to a stored reference trace
  • Detects and identifies individual BT devices (Classic & LE) and other device details
  • Devices are easily located using RSSI level changes
  • Trace data analysis is performed on-board with no need for computer/laptop
  • Spectrogram waterfall captures and records peak traces over time for historical analysis
  • Displays live, average, peak hold and multiple stored traces
  • Discrete Bands displays up to 16 preconfigured and customizable segments of the spectrum
  • Includes Spectrogram, Detailed Zoom, Raster Waterfall, and Persistence displays
  • Performs trace math to show difference trace
  • The MPP Multi-Purpose Probe provides carrier current, IR, Visible Light, Ultrasonic, Magnetic Leakage, and Coax cable testing
  • Built-in +15 dB pre-amp – improves receiver sensitivity to low level signals
  • Dual hot-swappable Li-ion batteries for continuous operation

Applications

  • Technical Surveillance Countermeasures (TSCM)
  • RF emissions detection and analysis
  • Site Surveys for communication systems
  • RF spectrum misuse investigation
  • RF and Tempest compliance testing
  • Inspection of packages or other objects for tracking devices
  • Security surveys for unauthorized or illicit transmissions
  • Detecting and locating unlawful eavesdropping and surveillance devices
  • Interference detection and troubleshooting
  • RF research and development
  • Detection of RF, WiFi, Bluetooth, cell phone, unknown transmitters

Preliminary product specifications and descriptions subject to change without notice, and will be updated as more details become available.

Specifications

RF SYSTEM – 43 GHz
Frequency: 10 kHz to 43 GHz
Sweep speed: 1100 GHz/sec at 10 kHz resolution
IBW: 125 MHz
DANL: -150 dBm/Hz
Preamp: 10 kHz-8 GHz: 15dB
Attenuation: 0 dB, -10 dB, -20 dB, -30 dB
Dynamic Range: 90 dB
ANTENNA SYSTEM
Built-in auto switching antenna system (10 kHz – 43 GHz) capable of performing 125 antenna switches per second.

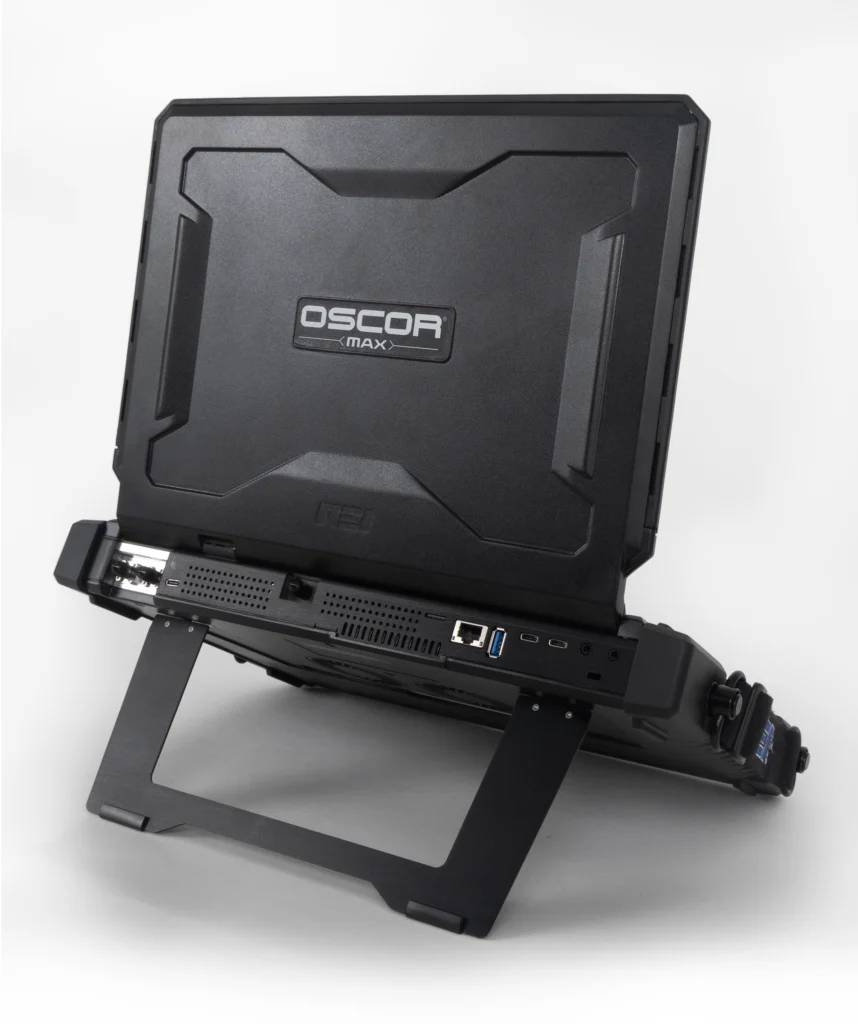

RF IN / IF OUT
Aux RF Inputs:
• 2.4 mm connector
• 2.92 mm Input [SMA compatible]
IF Output:
• SMA [375 MHz with 125 MHz BW]
AUDIO
Demodulation types: AM, FM (continuous spectrum update and display while demodulating)
Built-in speakers
Headphone output
Audio input
I/Q RECORDING
OSCOR Max can record and store I/Q data
USER INTERFACE
Gigabit Ethernet port for remote access
USER STORAGE
Externally accessible 2TB M.2 NVMe SSD
Micro SD Card Slot
USB 3 Type A Port
DISPLAY
Display: 13.3”/34 cm capacitive touchscreen
POWER SOURCES
Universal Supply: 100–240 VAC
Removable Batteries: 2x Rechargeable Lithium ION
USB-C PD Charging
Runtime: 2.5 hours minimum (3 hours typical)
ACCESSORIES
Multi-Purpose Probe (MPP)
• Carrier Current
• IR and Visible Light
• Ultrasonic
• Magnetic leakage
• Coax cable testing
Dual Battery Charger – charges OSCOR, MESA, TALAN, ORION batteries

Preliminary product specifications and descriptions subject to change without notice, and will be updated as more details become available.

Downloads

OSCOR Max Brochure (2.7 MB)
OSCOR Max Owner’s Manual Coming Soon

Preliminary product specifications and descriptions subject to change without notice, and will be updated as more details become available.

Included Accessories

MPP – Multi-Purpose Probe

REI Dual Li-ion Battery Charger and power cable for charging OSCOR, TALAN, MESA, and ORION batteries

Power Supply

2 Batteries

REI earbuds
